Hysitron 980 Triboindenter

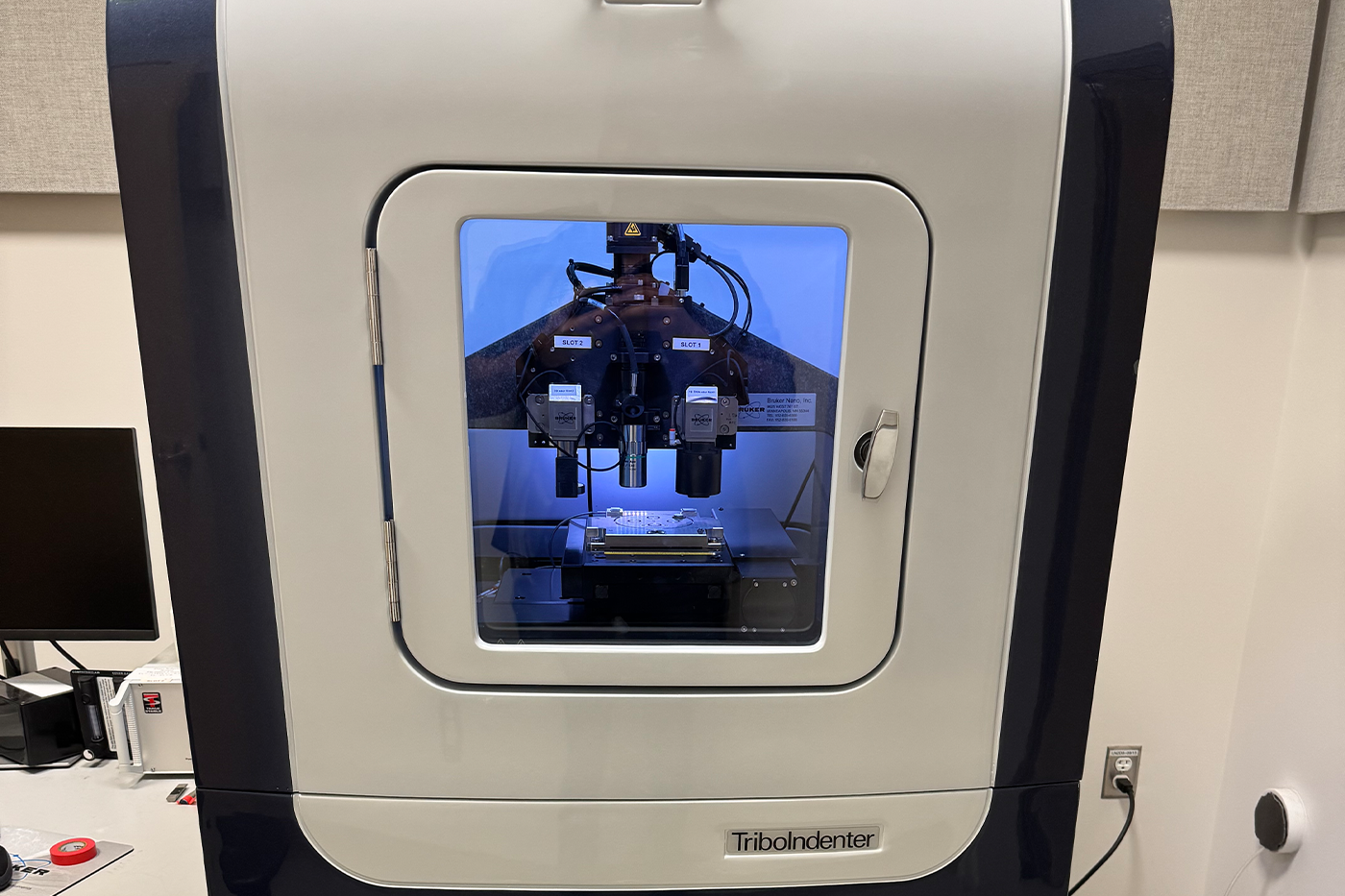

Hysitron TI-980 Triboindenter

The Bruker TI-980 triboindenter measures the hardness, modulus and other mechanical properties of micro-to-mesoscale, structures, thin films, and coatings.

It can apply loads of up to 15 mN to a sample through probes of specific shapes and dimensions while precisely measuring the force applied to and deformation of a sample.

It can also perform nano-DMA, scratch, ultrafast property mapping, and AFM imaging on samples - from room temp up to >600 °C.

Specifications:

  • Displacement noise floor – 0.1 nm
  • Load noise floor – 20 nN
  • Max load – 14 mN
  • Tip geometries:  Berkovich, Cube Corner, 30- mm diam flat punch, 1, 10, 100 mm radius cono-spherical.
